BUILT FOR
WARRIORS
For the warrior who demands nothing less than legit, trusted, and rugged night vision, our AN/PVS-33 delivers battle-ready performance and seamless compatibility.
Ready for the Fight




Ready for the Fight

01 |
Ruggedized
for Battle

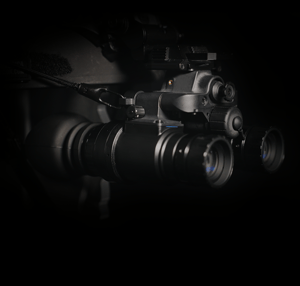

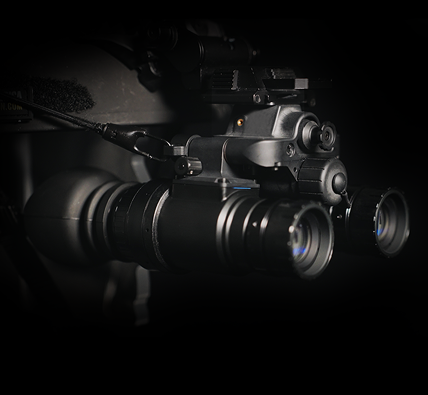

The ruggedized body is built to operate in the harshest of conditions on land or at sea. Engineered and MIL-tested with sustained accuracy anytime, anywhere.

02 |
Seamless
Compatibility
Designed to support drop-in tube upgrades, and provides backwards compatibility with components of the AN/PVS-14 monocular system.

03 |

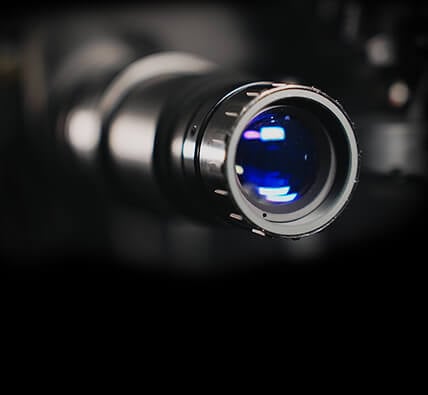

Enhanced
Optics

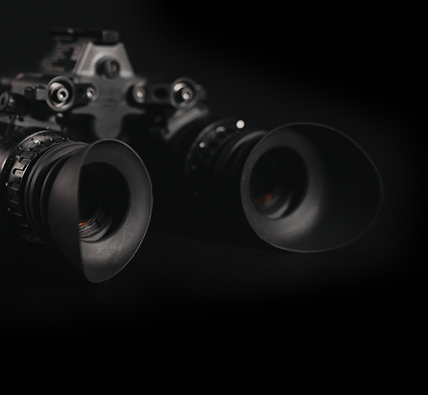

Gen 3 18mm gated image intensifier tubes produce high-resolution, reliable images in low light and near-infrared conditions. This product features lightweight polymer optics for reduced weight and durable, abrasion-resistant lenses. Adjustable diopter eyepieces (+2 to -6) allow independent monocular focus, which lessens eye strain during extended use.

04 |
Field
Upgradability

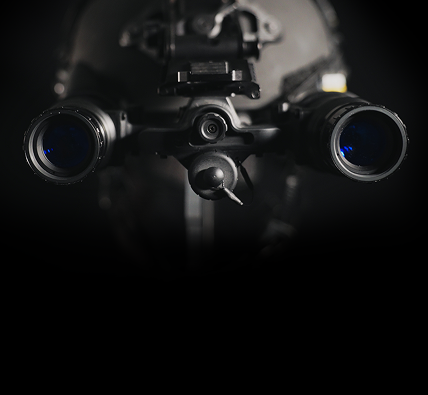

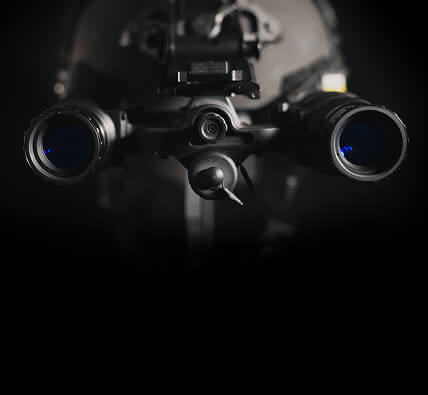

Engineered with field upgradability and warfighters in mind. The modular design allows for future upgrades with more advanced display-enabled or “fused” modules to be done in the field.

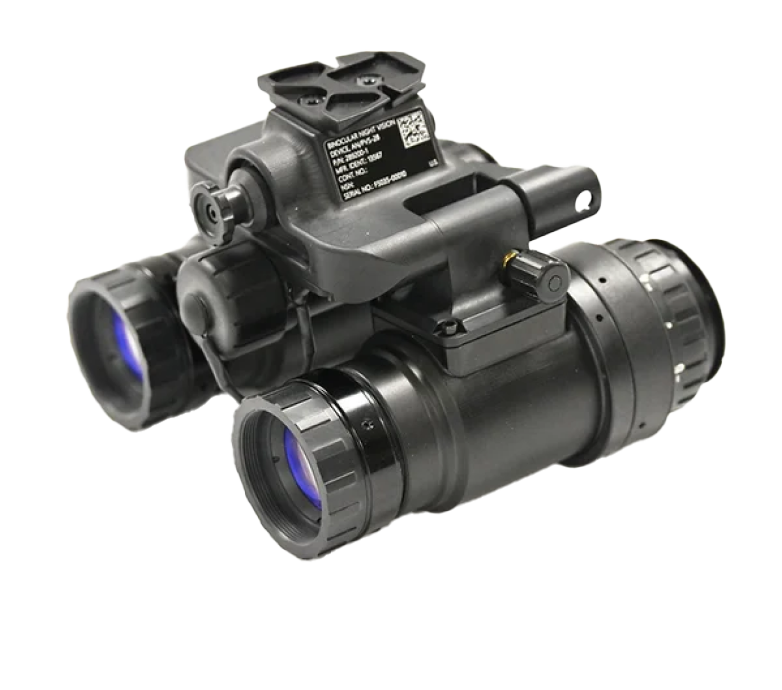

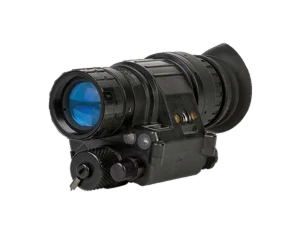

VS AN/PVS-33 (BiNOD)
The AN/PVS-33 (BiNOD) binocular builds on the strong legacy of the AN/PVS-14 monocular. The AN/PVS-33 (BiNOD) provides stereoscopic vision using high FOM white phosphor image intensification tubes enabling warfighters to move faster.


Made with American Grid

Dovetail Interface
Provides compatibility and ease of operation
with wide range of helmet mounts.
Drop-in Tube Replacements
System designed for ease of maintenance,
offering drop-in image intensifier tube replacements.
Interpupillary Distance (IPD) Adjustment
Allows system to be customized to the warfighter so monoculars do not need to manually readjusted after being in side stow.
Helmet Bungee Attachment Point
Allows for attachment of helmet bungee cords for increased NVG stabilization when operating in rough conditions.
AC Battery Compartment
Single AA lithium battery provides over 24 hours of use
in normal operating conditions.
Master Control Switch
Easily accessible master control switch with intuitive controls.
IR Illuminator
Allows system to be operate in areas without
starlight like subterranean environments.
External Battery Pack Connector
Allows system to be powered by external battery pack for extended use.
Adjustable Diopter
Allows system focus level to be customized
to the warfighter boosting image quality.
Polymer Hybrid Lenses
Provides significant reduction in system weight while
still offering the same performance and durability.
| Field of View | 40° nominal |
| Magnification | 1x |
| Diopter Adjustment, Adjustable Configuration |
+2 to -6 diopters |
| Focus Range | 25 cm to infinity |
| Weight (with Lithium Battery) |
525 grams |
| Immersion | 1 meter |
| Battery Type | One AA size (lithium or alkaline) |
| Battery Life | >24 hours, battery type & operating temperature dependent |
| External Battery Connection | Bridge Integrated |
